Fan Filter Units (FFU) — HEPA/ULPA Ceiling Modules, AC or EC Motor
Airkey FFUs deliver HEPA-filtered laminar air to cleanrooms, laboratories and clean equipment. Standard 2×2, 2×4, 3×4 and 4×4 ft sizes or custom, with CE-certified and UL-listed versions.
- Sizes
- 2×2 · 2×4 · 3×4 · 4×4 ft, or custom
- Air velocity
- 0.35–0.45 m/s (≈70–90 fpm)
- Listing
- CE · UL-listed 110 V / 60 Hz models
FFU models
Model suffix: G/S = galvanized/aluminium-zinc or stainless enclosure · A/E/D = AC, EC or DC motor.
| Model | Size (mm) | Size (ft) | Filter (mm) | Air velocity | Airflow (m³/h) | Voltage / Hz | Power (W) | Listing |
|---|---|---|---|---|---|---|---|---|
| FFU-G/S05-A/E/D31 | 575 × 575 | 2 × 2 | 570 × 570 | 0.35–0.45 m/s | 410–530 | 110 V / 60 | AC 98 · EC 65 | CE |
| FFU-G/S10-A/E/D35 | 1175 × 575 | 2 × 4 | 1170 × 570 | 0.35–0.45 m/s | 840–1080 | 110 V / 60 · 220 V / 50 | AC 150 · EC 90 | CE |
| FFU-G/S10-A/E/D35 | 1175 × 575 | 2 × 4 | 1170 × 570 | 0.35–0.45 m/s | 900–1100 | 110 V / 60 | AC 150 · EC 90 | UL |
| FFU-G/S15-A/E/D40 | 875 × 575 | 3 × 4 | 870 × 570 | 0.35–0.45 m/s | 1280–1650 | 110 V / 60 · 220 V / 50 | AC 180 · EC 130 | CE |
| FFU-G/S20-A/E/D47 | 1175 × 1175 | 4 × 4 | 1170 × 1170 | 0.35–0.45 m/s | 1720–2160 | 110 V / 60 · 220 V / 50 | AC 200 · EC 160 | CE |
| FFU-G/S20-A/E/D47 | 1175 × 1175 | 4 × 4 | 1170 × 1170 | 0.35–0.45 m/s | 1720–2160 | 110 V / 60 | AC 200 · EC 160 | UL |
Dimensions and ratings from Airkey’s FFU catalog. Final model, motor and voltage are confirmed with your quote.
AC for budget, EC for running cost

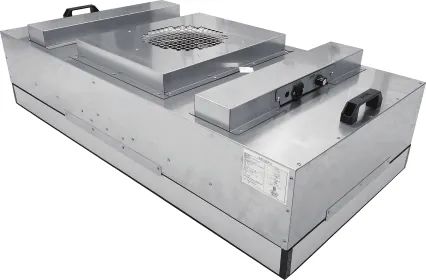

FFU with AC motor

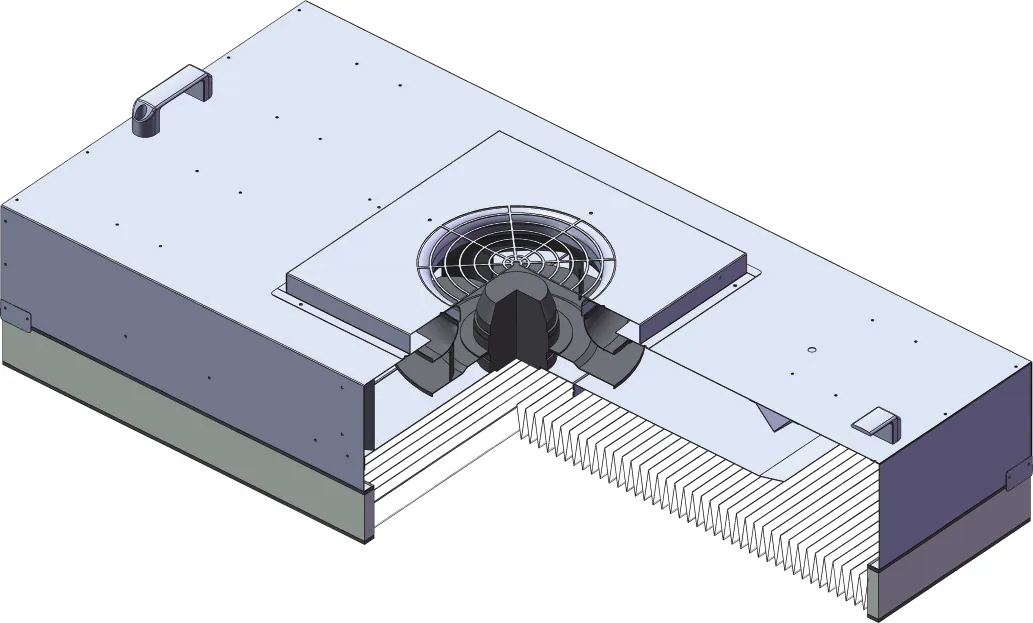

Low-resistance air passage, uniform outlet damper and backward-curved impeller. 3-step speed 0.3–0.45 m/s, standard H14 HEPA (99.99% @ 0.3 µm), optional super-slim body. Up to 20% more energy-efficient than conventional AC units.

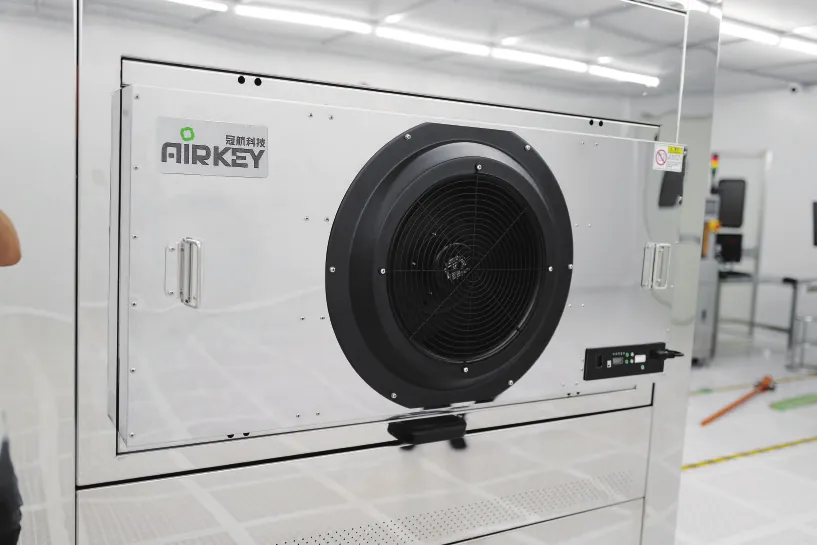

FFU with EC / DC brushless motor
Same airflow design with a brushless EC motor: up to 30% more energy-efficient and up to 10% quieter, saving electricity every year across a ceiling of FFUs. Stepless speed control available.
Options
- Size
- Standard or custom sizes
- Filter access
- Room-side replaceable (RSR) or top-side replaceable (TSR)
- Enclosure
- Aluminium-coated zinc sheet or stainless steel
- Filter class
- HEPA or ULPA, H13–U17 · gel-seal available
- Motor
- AC or EC/DC
- Speed control
- 3-step, 5-step or stepless
- Control system
- Switch, or RS485 / Ethernet gateway for group control
- Certification
- CE-certified or UL-listed units · OEM available

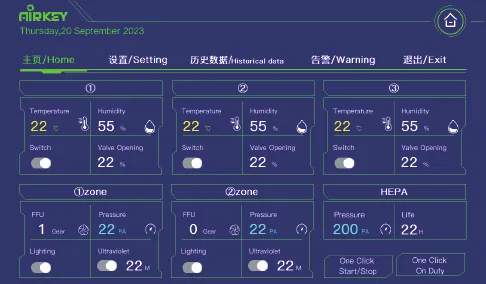

Group control
- Central control
- On/off, speed setting, status and faults for large numbers of FFUs
- Groups
- Divide FFUs by room or zone; timer-based energy saving
- Records
- System log of operation and fault history; multi-level access
- Expandable
- Add temperature, humidity, differential pressure and filter countdown
Every FFU tested before it ships
Scan-tested
Aerosol generator and photometer scan of every HEPA/ULPA filter for leakage below 0.01%, with particle counters checking efficiency at multiple points.
Uniform airflow
Velocity measured at multiple points under the filter face to confirm average and unevenness; air volume validated with a TSI balometer.
Sound-tested
Motor and impeller matched for low noise, tested with a sound meter, with a test report.
< 2 mm/s
Vibration below 2 mm/s at 0.45 m/s, checked before delivery and reported.
Spec the FFUs for your ceiling.
Tell us room size, ISO class, voltage and motor preference — we’ll quote the units, grid and controls.
